This Male Urine Collection System is to be used exclusively with External Catheters. The device pulls urine through tubing that is connected to a collection canister.used in both home environments and professional care facilities.
we will guide you to setting up your Male Urine Collection HOOMSOINS™ System
What’s in the box?

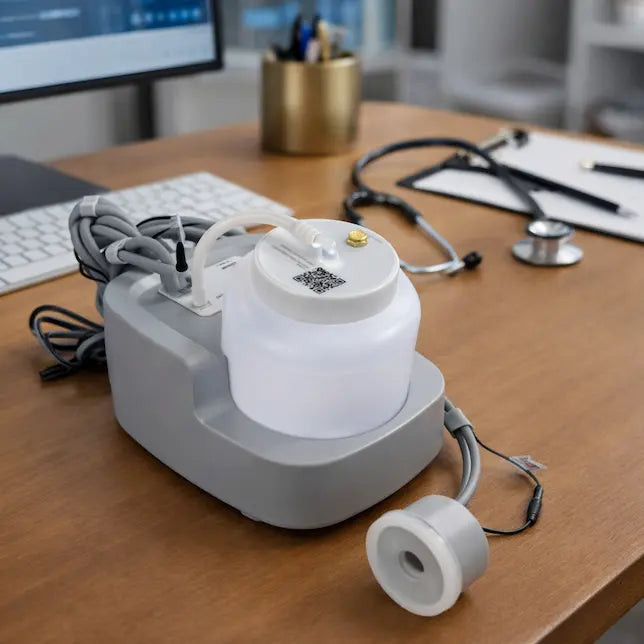

The Hoomsoins™ Male Urine Collection System Set includes the suction pump, 2000ml uriner canister with lid, pump tubing, catheter cup, 20mm catheter soft ring ,24mm catheter soft ring and adapter.
How to install it?
| 1.Connect the PUMP to the COLLECTION CANNISTER with the white colored soft tubing. Connect the SUCTION TUBING to the PUMP with the two grey colored soft tubes + 1 electric cable. Make sure all the connections are secure. |  |
| 2.Connect the EXTERNAL CATHETER (HS80081) to the COLLECTION TUBING (HS80088).COLLECTION TUBING includes 2 soft tubes + 1 cable.Make sure all the connections are secure and stable. |  |
| 3.Included are Two SILICONE RINGS (20mm and 24mm DIA).Choose the diameter si l icon cover that provides a snug and secure fit on genitals.you also can order extra 17 mm DIA Silicone ring. |
 |
| 4.Softly stretching the cover prior, Place the soft SILICONE COVER onto the penis,making sure the fit is stable and comfortable,Try and place the ring as close to the body as is still comfortable to insure a proper fit.if the cover is causing pain or unwanted pressure after 2 hours of use ,try a larger size cover. |
 |
| 5.Attach the EXTERNAL CATHETER cup to the SI L ICONE RING and double check the seal .Take care to orientate the ARROW mark on the cup towards the abdomen for optimal suction.The user can wear tight fitting underg-arments for shorts to help hold the external catheter in place. |
 |
| 6.Clean the CATHETER cup at least once every 2-3 days.with warm catheter cup at least once 3-4 weeks to maintain cleanliness. |
 |
